Getting started with python scripting for MOOSE

This document describes how to use the moose module in Python scripts or in an interactive Python shell. It aims to give you enough overview to help you start scripting using MOOSE and extract farther information that may be required for advanced work. Knowledge of Python or programming in general will be helpful. If you just want to simulate existing models in one of the supported formats, you can fire the MOOSE GUI and locate the model file using the File menu and load it. The GUI is described here. The example code in the boxes can be entered in a Python shell.

In a python script you import modules to access the functionalities they provide.

import moose

This makes the moose module available for use in Python. You can use Python's builtin help function to read the toplevel documentation for the moose module:

help(moose)

This will give you an overview of the module. Press `q` to exit the pager and get back to the interpreter. You can also access the documentation for individual classes and functions this way.

help(moose.connect)

To list the available functions and classes you can use dir function¹.

dir(moose)

MOOSE has built-in documentation in the C++-source-code independent of Python. The moose module has a separate doc function to extract this documentation.

moose.doc(moose.Compartment)

The class level documentation will show whatever the author/maintainer of the class wrote for documentation followed by a list of various kinds of fields and their data types. This can be very useful in an interactive session.

Each field can have its own detailed documentation, too.

moose.doc('Compartment.Rm')

Note that you need to put the class-name followed by dot followed by field-name within quotes. Otherwise, moose.doc will receive the field value as parameter and get confused.

Differebt types of biological entities like neurons, enzymes, etc are represented by classes and individual instances of those types are objects of those classes. Objects are the building-blocks of models in MOOSE. We call MOOSE objects `element` and use object and element interchangably in the context of MOOSE. Elements are conceptually laid out in a tree-like hierarchical structure. If you are familiar with file system hieararchies in common operating systems, this should be simple.

At the top of the object hierarchy sits the Shell, equivalent to the root directory in UNIX-based systems and represented by the path `/`. You can list the existing objects under `/` using the le function.

moose.le()

This shows something like

Elements under /
/Msgs
/clock
/classes

`Msgs`, `clock` and `classes` are predefined objects in MOOSE. And each object can contain other objects inside them. You can see them by passing the path of the parent object to le. Entering

moose.le('/clock')

prints

Elements under /clock
/clock/tick[0]

Now let us create some objects of our own. This can be done by invoking MOOSE class constructors (just like regular Python classes).

model = moose.Neutral('/model')

The above creates a Neutral object named model. Neutral is the most basic class in MOOSE. A Neutral element can act as a container for other elements. We can create something under model:

soma = moose.Compartment('/model/soma')

Every element has a unique path. This is a concatenation of the names of all the objects one has to traverse starting with the root to reach that element.

print soma.path

shows you its path:

/model/soma

and the name of the element can be printed, too:

print soma.name

shows:

soma

The Compartment elements model small portions of a neuron. Some basic experiments can be carried out using a single compartment. Let us create another object to act on the soma. This will be a step current generator to inject a current pulse into the soma.

pulse = moose.PulseGen('/model/pulse')

You can use le at any point to see what is there:

moose.le('/model')

will show you

Elements under /model
/model/soma
/model/pulse

And finally, we can create a Table to record the timeseries of the soma's membrane potential. It is good practice to organize the data separately from the model. So we do it as below:

data = moose.Neutral('/data')
vmtab = moose.Table('/data/soma_Vm')

Now that we have the essential elements for a small model, we can go on to set the properties of this model and the experimental protocol.

Elements have several kinds of fields. The simplest ones are the value fields. These can be accessed like ordinary Python members. You can list the available value fields using getFieldNames function:

soma.getFieldNames('valueFinfo')

Here valueFinfo is the type name for value fields. Finfo is short form of field information. For each type of field there is a name ending with -Finfo. The above will display the following list:

 ('this',
'name',
'me',
'parent',
'children',
'path',
'class',
'linearSize',
'objectDimensions',
'lastDimension',
'localNumField',
'pathIndices',
'msgOut',
'msgIn',
'Vm',
'Cm',
'Em',
'Im',
'inject',
'initVm',
'Rm',
'Ra',
'diameter',
'length',
'x0',
'y0',
'z0',
'x',
'y',
'z')

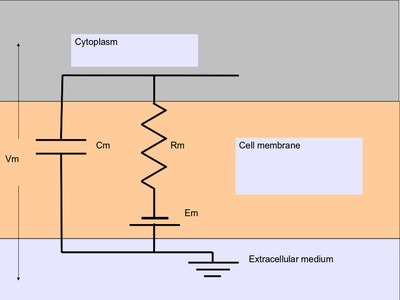

Some of these fields are for internal or advanced use, some give access to the physical properties of the biological entity we are trying to model. Now we are interested in Cm, Rm, Em and initVm. In the most basic form, a neuronal compartment acts like a parallel RC circuit with a battery attached. Where R and C are resistor and capacitor connected in parallel and the battery with voltage Em is in series with the resistor [see figure below].

The fields are populated with some defaults.

print soma.Cm, soma.Rm, soma.Vm, soma.Em, soma.initVm

will give you:

1.0 1.0 -0.06 -0.06 -0.06

You can set the Cm and Rm fields to something realistic using simple assignment (we follow SI unit)².

soma.Cm = 1e-9
soma.Rm = 1e7
soma.initVm = -0.07

Instead of writing print statements for each field, you could use the utility function showfield to see that the changes took effect:

moose.showfield(soma)

will list most of the fields with their values:

[ /model/soma ]
diameter             = 0.0
linearSize           = 1
localNumField        = 0
Ra                   = 1.0
y0                   = 0.0
Rm                   = 10000000.0
inject               = 0.0
Em                   = -0.06
initVm               = -0.07
x                    = 0.0
path                 = /model/soma
x0                   = 0.0
z0                   = 0.0
class                = Compartment
name                 = soma
Cm                   = 1e-09
Vm                   = -0.06
length               = 0.0
Im                   = 0.0
y                    = 0.0
lastDimension        = 0
z                    = 0.0

Now we can setup the current pulse to be delivered to the soma:

pulse.delay[0] = 50e-3
pulse.width[0] = 100e-3
pulse.level[0] = 1e-9
pulse.delay[1] = 1e9

This tells the pulse generator to create a 100 ms long pulse 50 ms after the start of the simulation. The amplitude of the pulse is set to 1 nA. We set the delay for the next pulse to a very large value (larger than the total simulation time) so that the stimulation stops after the first pulse. Had we set pulse.delay = 0 , it would have generated a pulse train at 50 ms intervals.

In order for the elements to interact during simulation, we need to connect them via messages. Elements are connected to each other using special source and destination fields. These types are named srcFinfo and destFinfo. You can query the available source and destination fields on an element using getFieldNames as before. This time, let us do it another way: by the class name:

moose.getFieldNames('PulseGen', 'srcFinfo')

This form has the advantage that you can get information about a class without creating elements of that class. The above code shows:

('childMsg', 'outputOut')

Here childMsg is a source field that is used by the MOOSE internals to connect child elements to parent elements. The second one is of our interest. Check out the built-in documentation here:

moose.doc('PulseGen.outputOut')

shows

PulseGen.outputOut: double - source field
      Current output level.

so this is the output of the pulse generator and this must be injected into the soma to stimulate it. But where in the soma can we send it? Again, MOOSE has some introspection built in:

soma.getFieldNames('destFinfo')

shows

('parentMsg',
 'set_this',
 'get_this',
   ...
 'set_z',
 'get_z',
 'injectMsg',
 'randInject',
 'cable',
 'process',
 'reinit',
 'initProc',
 'initReinit',
 'handleChannel',
 'handleRaxial',
 'handleAxial')

Now that is a long list. But much of it are fields for internal or special use. Anything that starts with get_ or set_ are internal destFinfo used for accessing value fields (we shall use one of those when setting up data recording). Among the rest injectMsg seems to be the most likely candidate. Use the connect function to connect the pulse generator output to the soma input:

m = moose.connect(pulse, 'outputOut', soma, 'injectMsg')

connect(source, source_field, dest, dest_field) creates a `message` from source element's source_field field to dest elements dest_field field and returns that message. Messages are also elements. You can print them to see their identity:

print m

on my system gives³

<moose.SingleMsg: id=5, dataId=733, path=/Msgs/singleMsg[733]>

You can get some more information about a message:

print m.e1.path, m.e2.path, m.srcFieldsOnE1, m.destFieldsOnE2

will confirm what you already know:

/model/pulse /model/soma ('outputOut',) ('injectMsg',)

A message element has fields e1 and e2 referring to the elements it connects. For single one-directional messages these are source and destination elements, which are pulse and soma respectively. The next two items are lists of the field names which are connected by this message.

You could also check which elements are connected to a particular field:

print soma.neighbours['injectMsg']

shows

[<moose.ematrix: class=PulseGen, id=729,path=/model/pulse>]

Notice that the list contains something called ematrix. We discuss this later. Also neighbours is a new kind of field: lookupFinfo which behaves like a dictionary. Next we connect the table to the soma to retrieve its membrane potential Vm. This is where all those destFinfo starting with get_ or set_ come in use. For each value field `X`, there is a destFinfo get_{X} to retrieve the value at simulation time. This is used by the table to record the values Vm takes.

moose.connect(vmtab, 'requestData', soma, 'get_Vm')

This finishes our model and recording setup.

With the model all set up, we have to schedule the simulation. MOOSE has a central clock element(`/clock`) to manage time. Clock has a set of Tick elements under it that take care of advancing the state of each element with time as the simulation progresses. Every element to be included in a simulation must be assigned a tick. Each tick can have a different ticking interval (dt) that allows different elements to be updated at different rates. We initialize the ticks and set their dt values using the setClock function.

moose.setClock(0, 0.025e-3)
moose.setClock(1, 0.025e-3)
moose.setClock(2, 0.25e-3)

This will initialize ticks #0 and 1 with dt = 25 μ s and tick #2 with dt = 250 μ s. Thus all the elements scheduled on ticks # 0 and 1 will be updated every 25 μ s and those on tick # 2 every 250 μ s. We use the faster clocks for the model components where finer timescale is required for numerical accuracy and the slower clock to sample the values of Vm.

So to assign tick # 2 to the table for recording Vm, we pass its whole path to the useClock function.

moose.useClock(2, '/data/soma_Vm', 'process')

Read this as "use tick # 2 on the element at path /data/soma_Vm to call its process method at every step". Every class that is supposed to update its state or take some action during simulation implements a process method. And in most cases that is the method we want the ticks to call at every time step. A less common method is init, which is implemented in some classes to interleave actions or updates that must be executed in a specific order⁴. The Compartment class is one such case where a neuronal compartment has to know the Vm of its neighboring compartments before it can calculate its Vm for the next step. This is done with

moose.useClock(0, soma.path, 'init')

Here we used the path field instead of writing the path explicitly.

Next we assign tick # 1 to process method of everthing under /model.

moose.useClock(1, '/model/##', 'process')

Here the second argument is an example of wildcard path. The ## matches everything under the path preceding it at any depth. Thus if we had some other objects under /model/soma, process method of those would also have been scheduled on tick # 1. This is very useful for complex models where it is tedius to scheduled each element individually. In this case we could have used /model/# as well for the path. This is a single level wildcard which matches only the children of /model but does not go farther down in the hierarchy.

Once the elements are assigned ticks, we can put the model to its initial state using

moose.reinit()

You may remember that we had changed initVm from -0.06 to -0.07. The reinit call we initialize Vm to that value. You can verify that:

print soma.Vm

-0.07

Finally, we run the simulation for 300 ms:

moose.start(300e-3)

The data will be recorded by the soma_vm table, which is referenced by the variable vmtab. The Table class provides a numpy array interface to its content. The field is vec. So you can easily plot the membrane potential using the matplotlib library.

import pylab
t = pylab.linspace(0, 300e-3, len(vmtab.vec))
pylab.plot(t, vmtab.vec)
pylab.show()

The first line imports the pylab submodule from matplotlib. This useful for interactive plotting. The second line creates the time points to match our somulation time and length of the recorded data. The third line plots the Vm and the fourth line makes it visible. Does the plot match your expectation?

comp_array = moose.ematrix('/model/comp', (3,), 'Compartment')

print comp_array.path, type(comp_array)

for comp in comp_array:
    print comp.path, type(comp)

/model/comp[0] <type 'moose.melement'>
/model/comp[1] <type 'moose.melement'>
/model/comp[2] <type 'moose.melement'>

x = moose.element('/model/soma')

Now you know the basics of pymoose and how to access the help system. MOOSE is backward compatible with GENESIS and most GENESIS classes have been reimplemented in MOOSE. There is slight change in naming (MOOSE uses CamelCase), and setting up messages are different. But GENESIS documentation is still a good source for documentation on classes that have been ported from GENESIS.

In addition, the Demos/snippets directory in your MOOSE installation has small executable python scripts that show usage of specific classes or functionalities. Beyond that you can browse the code in the Demos directory to see some more complex models.

If the built-in MOOSE classes do not satisfy your needs entirely, you are welcome to add new classes to MOOSE. The API documentation will help you get started. Finally you can join the moose mailing list and request for help.
